| Place of Origin: | China |
| Brand Name: | FLYROM |
| Certification: | CE/ROHS |
| Model Number: | BIDI-1.25G-SFP-40-AD |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Please inquiry sales@flyromtech.net |
| Packaging Details: | Neutrial packing |
| Delivery Time: | 3-7 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 1000PCS/MONTH |
| Speed: | 1.25G | Distance: | 40KM |
|---|---|---|---|
| Type: | SM | Wavelength: | 1550/1310nm |
| Optical Budget: | 17dB | Compatibility: | Multi-Vendor MSA |

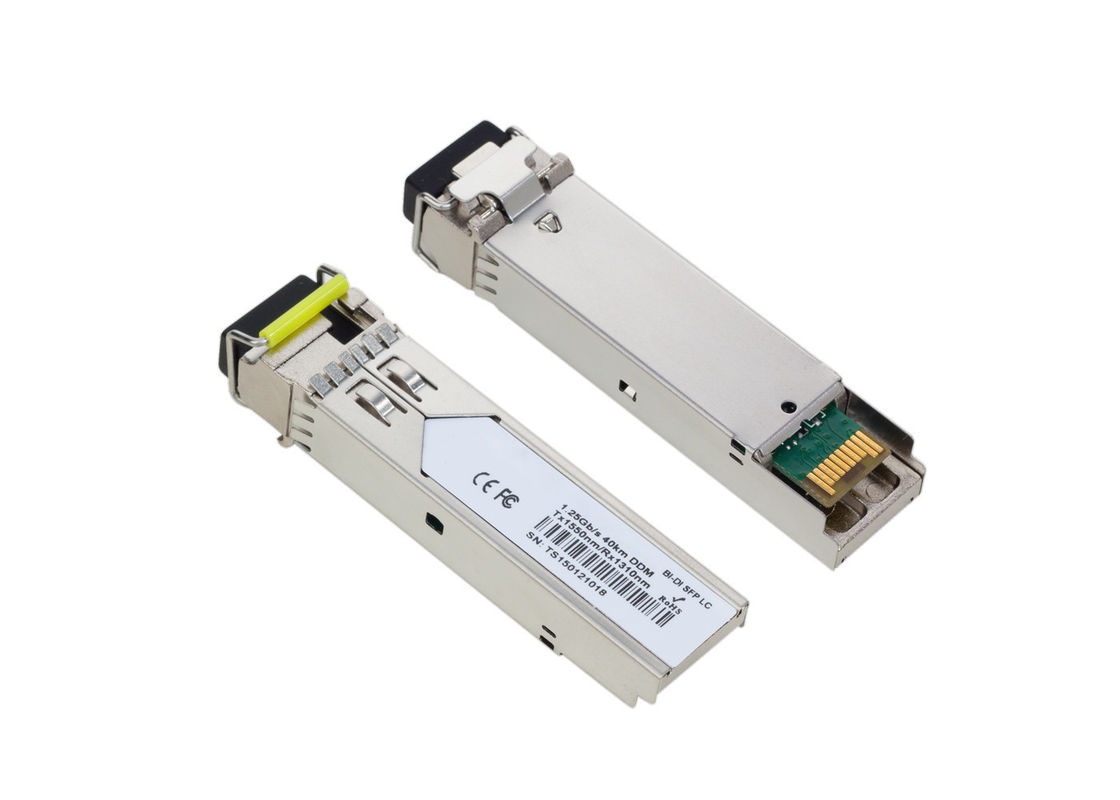

1.25G BIDI Single Fiber SM SFP 1550/1310nm 40KM Transceiver
Hot Pluggable, Single LC, +3.3V, 1550nm Tx/1310nm Rx, DFB-LD, Single-mode, DDM
Features:
Applications:
| Media Type: | Single-Mode Fiber (SMF) |
|---|---|
| TX Wavelength: | 1550 nm. |
| RX Wavelenght: | 1310 nm. |
| Minimum Optical Budget: | 17 dB |
| Maximum Distance: | 40km |
| Supported Data Rate: | 1.063-1.25Gbps |
| Supported Applications: | Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps) |
| DDM/DOM: | Support |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Single LC |
| Tx Wavelength Bandwidth: | 40 nm (1290-1330 nm) |
| Rx Wavelength Bandwidth: | 40 nm (1530-1570 nm) |
| Minimum Transmitting Power: | -6 dB |
| Maximum Transmitting Power: | 0 dB |
| Receiver Sensitivity: | -23 dBm |
| Receiver Overload: | -3 dBm |
| Dispersion: | 300-400 ps/nm |
| Transmitter Type: | DFB Laser |
| Receiver Type: | PIN photodiode |
| Power: | +3.3V single power supply |
| Chipset: | MAXIM, MINDSPEED, SEMTECH |
| Compliance: | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA |
All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,
We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.
We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
