| Place of Origin: | China |
| Brand Name: | FR |
| Certification: | CE/ROHS |
| Model Number: | BIDI-10G-SFP-80B |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Please inquiry jojo_he2010@foxmail.com |
| Packaging Details: | Neutrial packing |
| Delivery Time: | 3-7 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 1000PCS/MONTH |
| Speed: | 10G | Distance: | 80km |
|---|---|---|---|
| Wavelengths: | 1550/1490nm | Type: | BIDI |
| Optical Budget: | 23dB | Compatibility: | Multi-Vendor MSA Compatible |

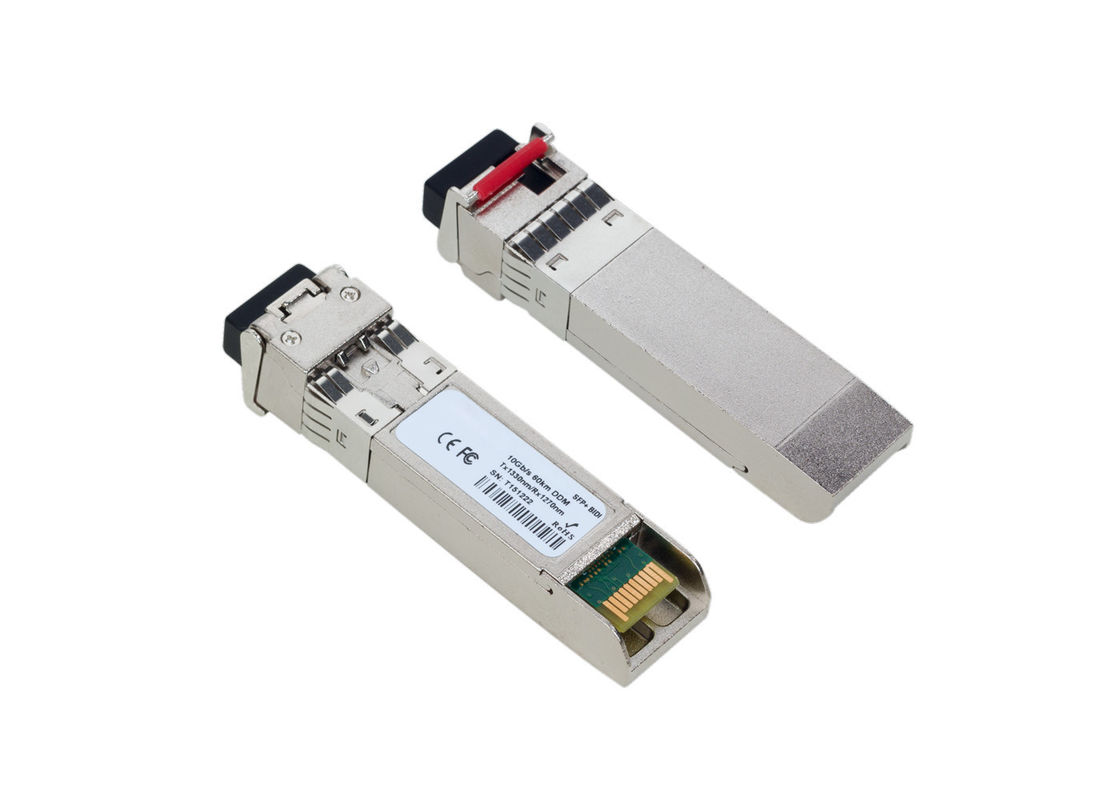

10G BIDI 1550/1490nm 80km DDM SFP+ Transceiver
Hot Pluggable, Single LC, +3.3V, 1550nm/1490nm CWDM DFB, DDM
Features:
Applications:
| Media Type: | Single-Mode Fiber (SMF) |
|---|---|
| TX Wavelength: | 1550 nm. |
| RX Wavelenght: | 1490 nm. |
| Minimum Optical Budget: | 23 dB |
| Maximum Distance: | 80km |
| Supported Data Rate: | 1.25-10.31 Gbps |
| Supported Applications: | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps) |
| DDM/DOM: | Support |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Single LC |
| Tx Wavelength Bandwidth: | 40 nm (1470-1510 nm) |
| Rx Wavelength Bandwidth: | 40 nm (1530-1570 nm) |
| Minimum Transmitting Power: | 0 dB |
| Maximum Transmitting Power: | 7 dB |
| Receiver Sensitivity: | -23 dBm |
| Receiver Overload: | -7 dBm |
| Dispersion: | 1600 ps/nm |
| Transmitter Type: | EML Laser |
| Receiver Type: | APD Photodiode |
| Power: | +3.3V single power supply |
| Chipset: | MAXIM, MINDSPEED, SEMTECH |
| Compliance: | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA |
BIDI-10G-SFP-80B is Multi-Vendor MSA Compatible SFP+ (Small Form factor Pluggable) Transceiver, operating over Single Fiber Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 23 dB, with in most cases is enough to reach about 80 km distance.
However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality EML Laser transmitter with operating at nominal wavelength 1490 nm. and 1550 nm. APD Photodiode receiver.
It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. BIDI-10G-SFP-80B operates in Standard 0°-70°C temperature range and has Single LC interface.
All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,
We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.
We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
